Ripple
A series of dinnerware and decorative bowl set created from post-consumer soda-lime glass waste. Through collection, sanitization, material breakdown, fusing and slumping, bottle glass waste is regenerated into new functional objects that can be recycled again just like a beer bottle at the end of its lifecycle.
![](https://freight.cargo.site/t/original/i/1577dda492a4ac734a9d525faa0c8996e7c2567864b6e78bd5689735d27472b3/ripple---Copy.png)
![](https://freight.cargo.site/t/original/i/673269a60dbc84863b69ac9c2c33aefb0693c3a8cb672828825fd240fd18b71d/DSCF9697-copy.jpg)
RAW MATERIAL PREPERATION
COLLECTION & SANITIZATION
Glass waste is collected from sources like resturant and bars who are not working with recyclers and discard their bottles with the landfill.
![](https://freight.cargo.site/t/original/i/11e3093efe72189f883053d8b6232608a7eabcd9b86c77ef84445b7ae7f3855a/IMG_7242-copy.jpg)
DIY STEEL GLASS CRUSHER
![]()
![](https://freight.cargo.site/t/original/i/e11a5f218ea586194c0cb7faa1f6740624dd365de07fce667aca2dab21730279/1-rusher.jpg)
CRUSHING INTO SHARDS
![]()
![](https://freight.cargo.site/t/original/i/514bb5e65d1df59bd30ce87e6b5ce8be249b5108345fee1d971f2635bb514c16/1-crusherr.jpg)
SHIFT & SANITIZE
![]()
MOLD MAKING
3D MOCKUP & PROPOSAL
![]()
![](https://freight.cargo.site/t/original/i/9bab097585dbfe311d3c7dff1ffc2479929582c278cb71edaccf250207775d11/1-3d.png)

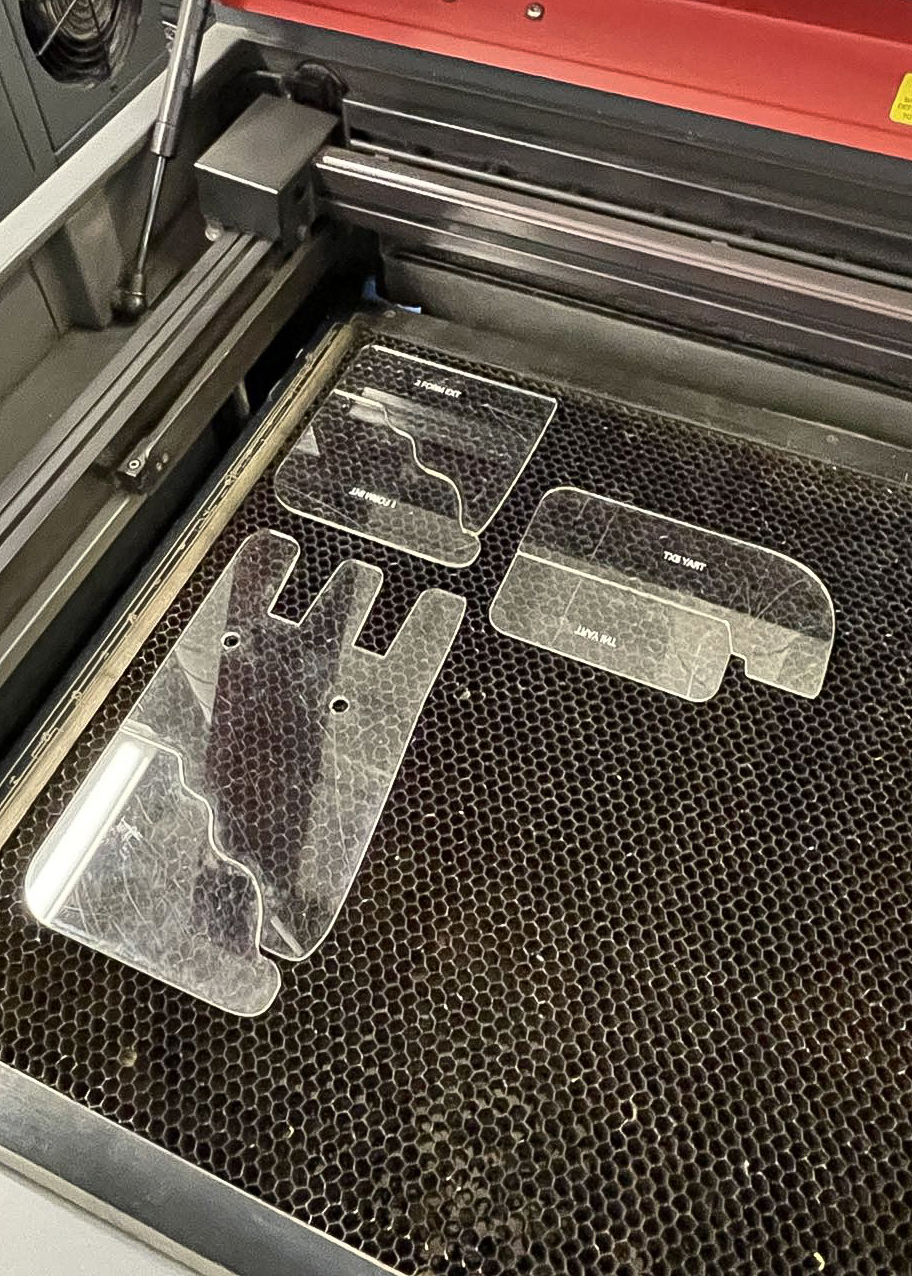

LASERCUT JIG
![]()
![](https://freight.cargo.site/t/original/i/e63721a439446a539c9bb2ba4f4f8d3021d2b1ff10e3e5193a7b5e16580559ce/1.-laser.jpg)
TURNING W/ JIG
![]()
![](https://freight.cargo.site/t/original/i/aa176d9576f2922285fa845aae647c2f03dcaf4884075a8e4d7ba95fbb8c1ae0/1-mold-making.jpg)
CLAY POSITIVE
![]()
![](https://freight.cargo.site/t/original/i/92a1cd8065fd0b8bd612dc8ba940a258c75f25d672d345a50057d4495b9734e0/1.-mold-1.jpg)
︎︎︎ Slip cast molds were made using the clay positive method above, the slip cast molds were used to batch produce stoneware glass slump molds. ︎︎︎
FUSING PLATE
![]()
TOP: SLIP CAST MOLD
BOTTOM: STONEWARE END PRODUCT
![](https://freight.cargo.site/t/original/i/29004990970a731a5bb68652c9a33028fdfaa766565c1e19377c36a4c8341e2e/1-mold-2-2.jpg)

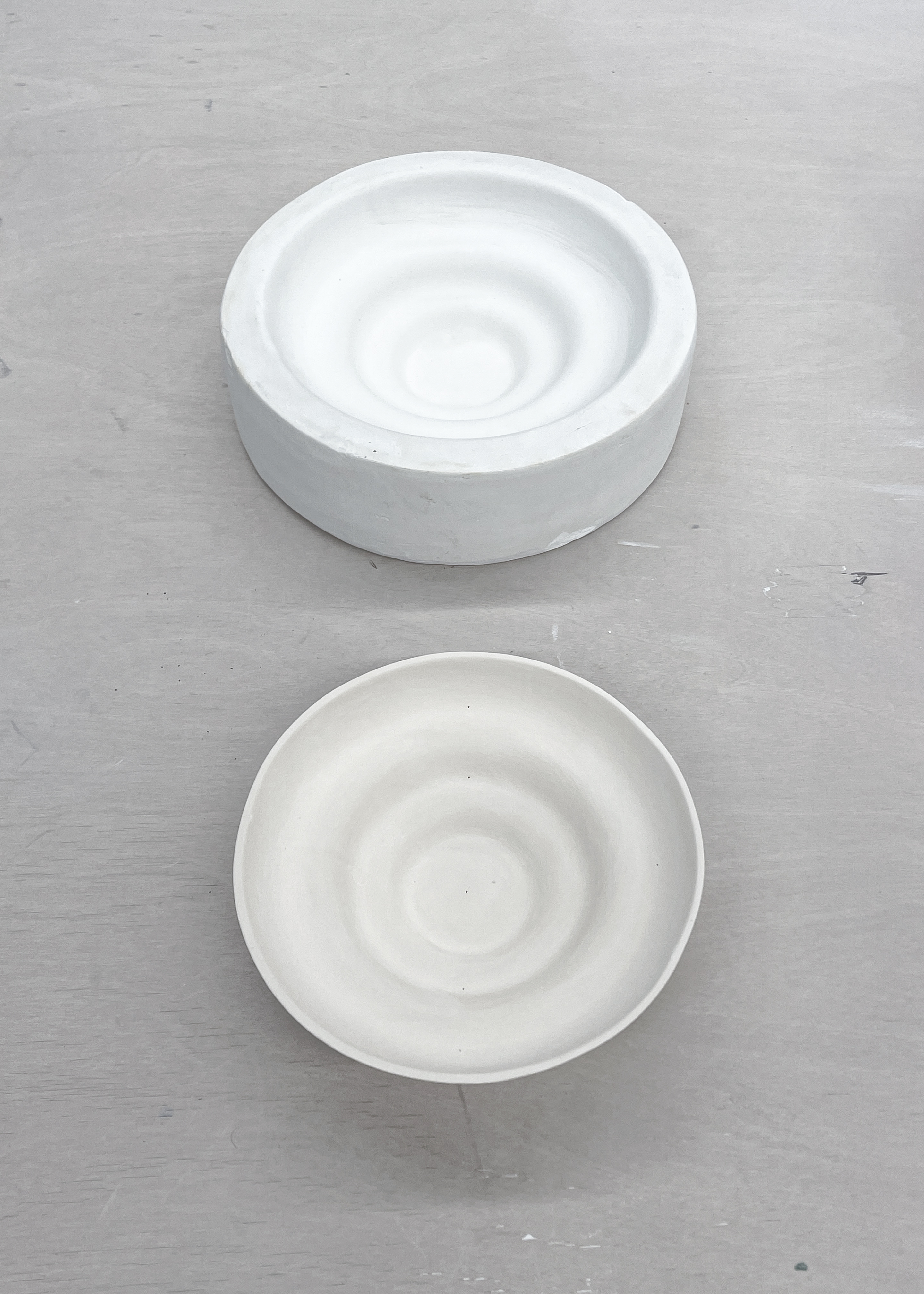

TOP: SLIP CAST MOLD
BOTTOM: STONEWARE END PRODUCT
SLUMP MOLD 1
![]()
![](https://freight.cargo.site/t/original/i/b21ecb9d67adad9f3ad3d1301acd2ea8428c1836dfd42a2f597009ecfaba8fa4/1-mold-3-2.jpg)
SLUMP MOLD 2
![]()
![](https://freight.cargo.site/t/original/i/25095dbe4aaf210866072cc3fff6328fb5cebacb8a415d32caa73fc3ac360bc1/1-mold-1-2.jpg)

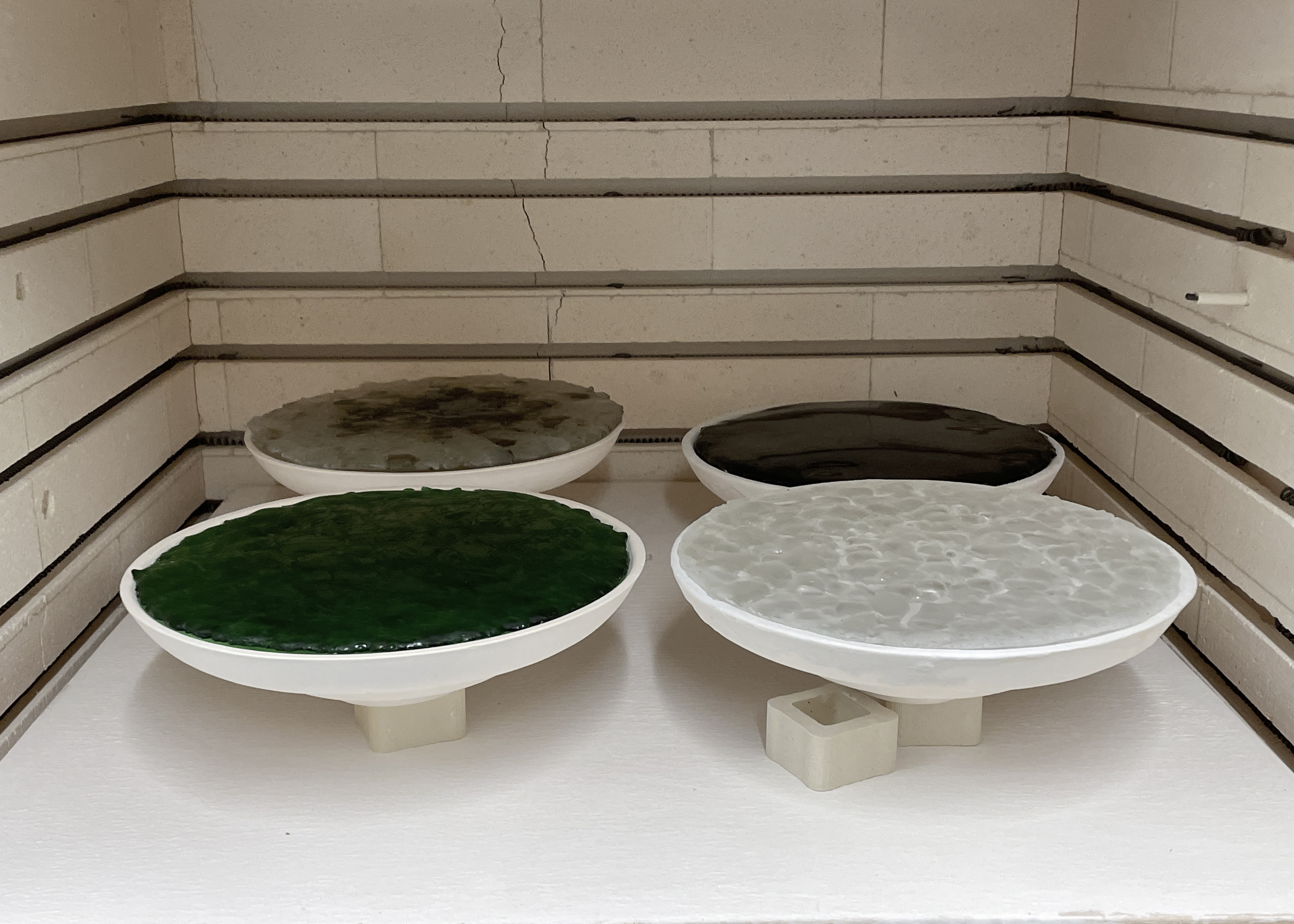

FUSING SHARDS
![]()

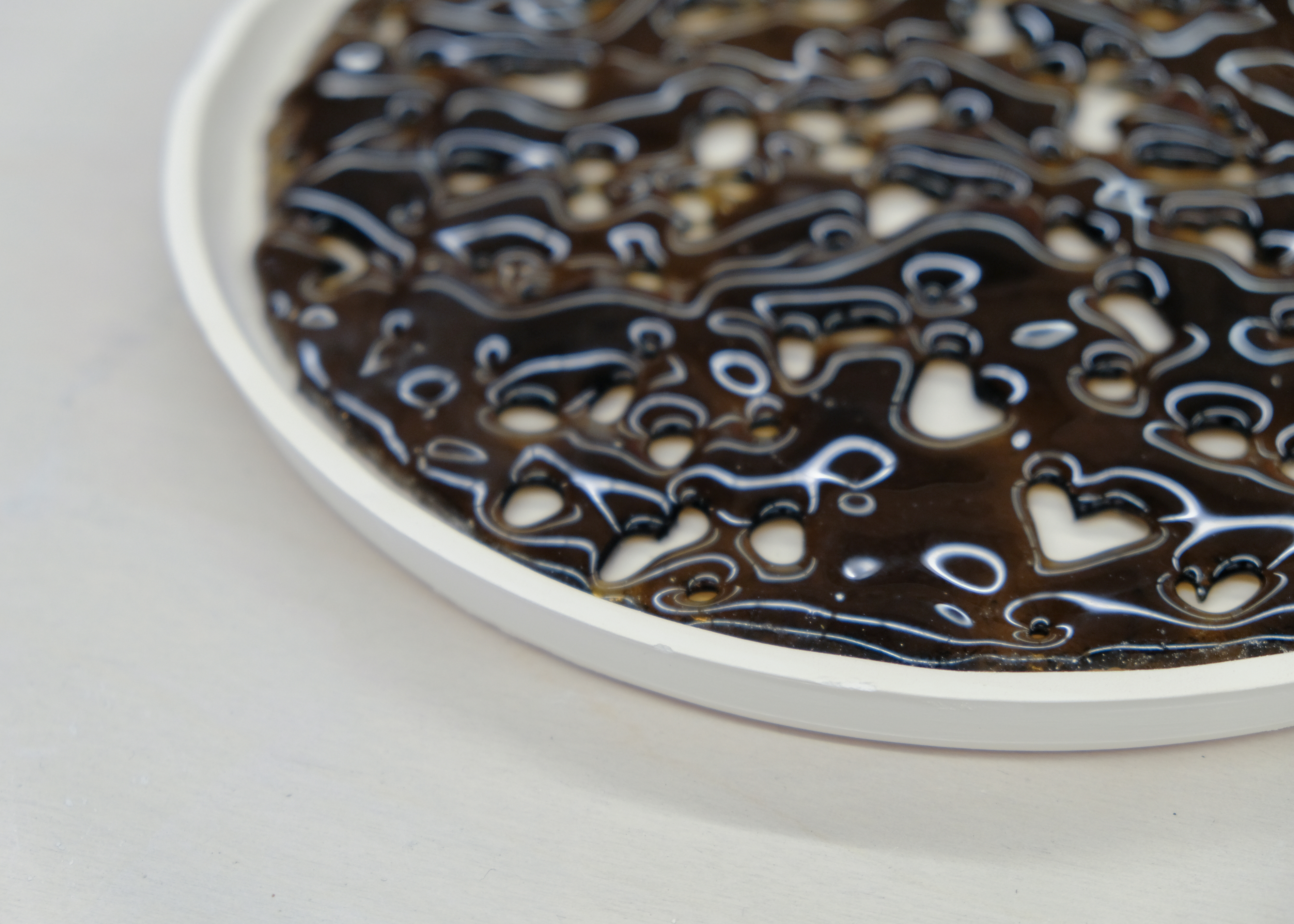

FUSED FLAT PLATE
![]()

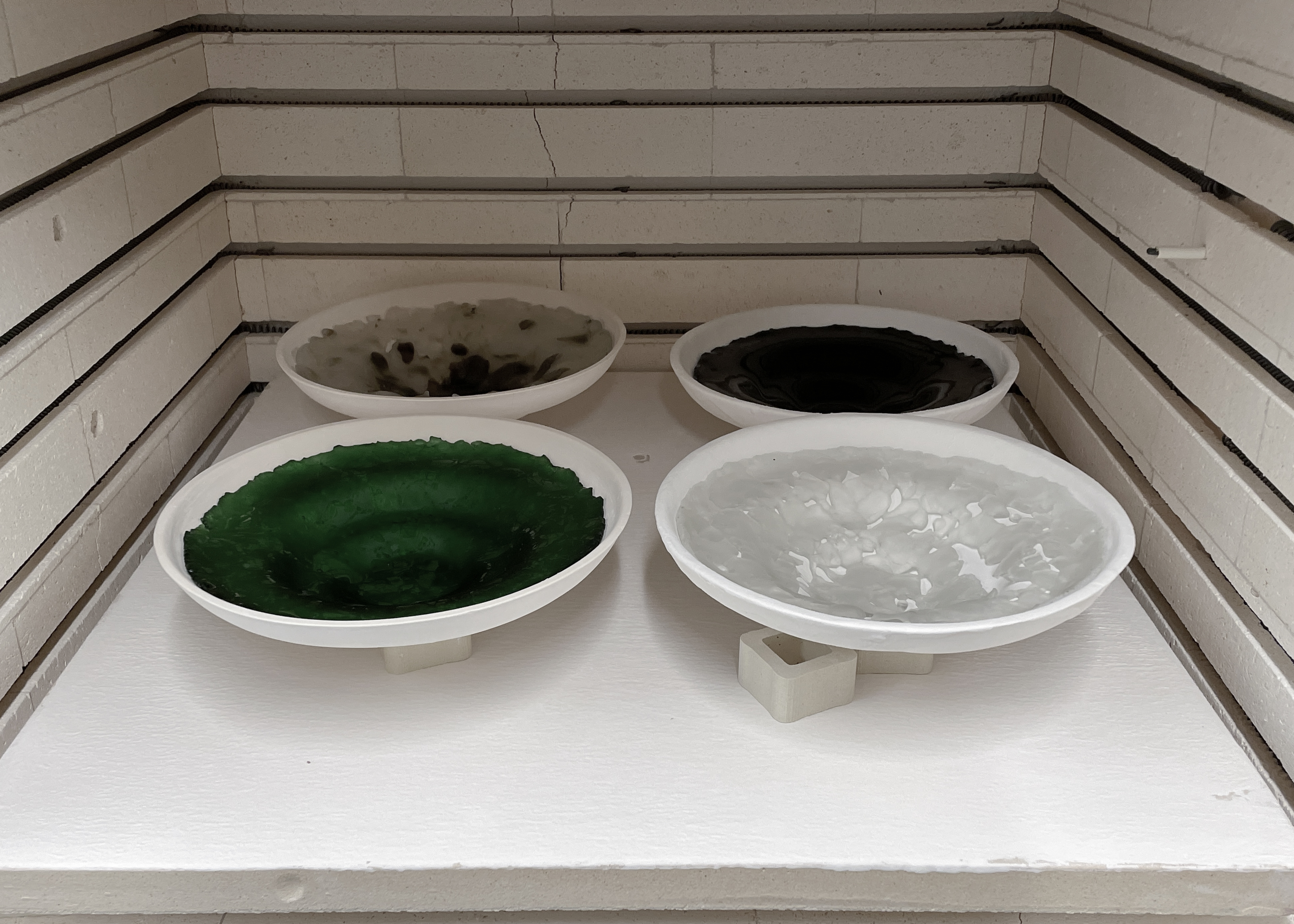

GLASS SLUMP
![]()
END PRODUCT
![]()
THE CHALLENGE
Different types of glass fuses and slumps in different temperture and require a meticulous firing schedule with specification in tempeture, tempeture changing speed, and hold time in relation to velocity of slumping.
Having no available information on firing commercial recycled soda lime glass, I had to estimate based on relative information and reaching out to a dozen of experienced glass workers across the US. With extensive investigation and a little bit of luck, I was able to produce successful products within 2 experiments.
